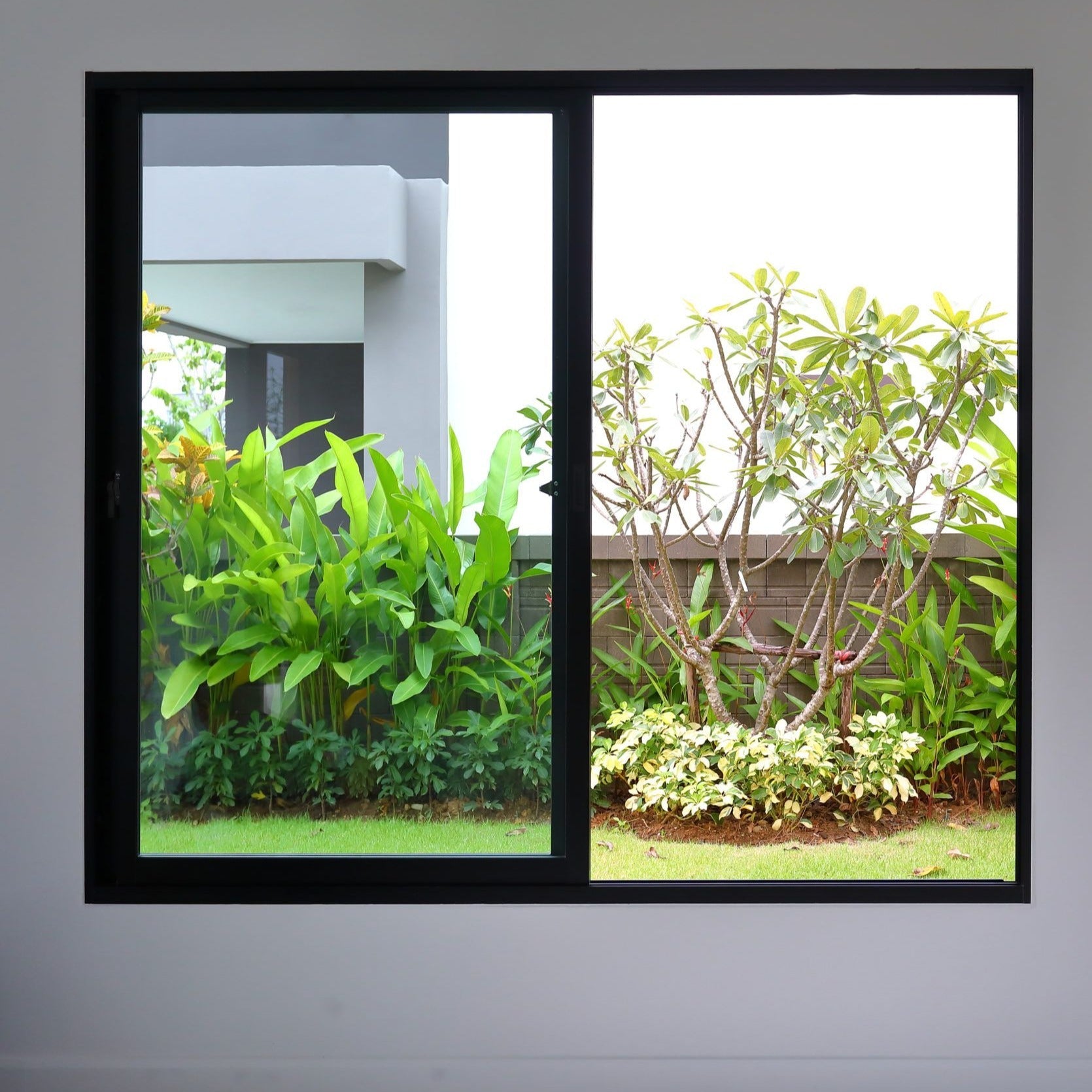

Sliding Window XO 514 H x 1210 W

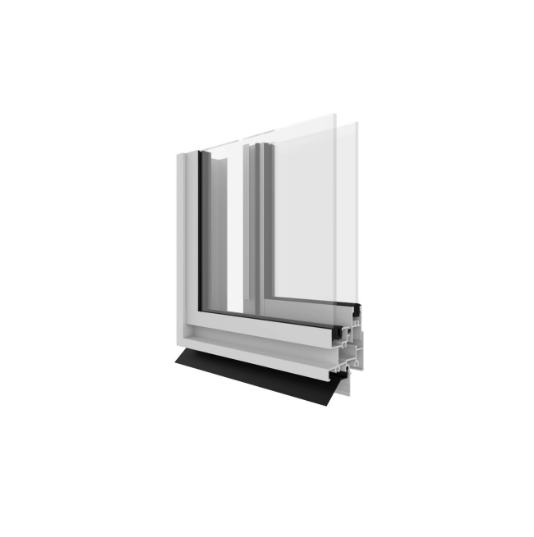

DESCRIPTION: The Sliding Window suite has been designed to provide a neat, streamlined appearance with its squared mullions and glazing beads.

With the use of adaptors, the Sliding Window can be double glazed to offer
an enhanced level of thermal comfort and performance.

Being part of the residential range allows for integration with a complementary selection of awning, casement, double hung or sliding doors for a whole of house solution.

LEAD TIME: The majority of our products are made to order and delivery is approximately 15 working days from order. Some standard sized products in standard colours may be availed within 3 working days. Please contact us with your required items for confirmation.

KEY FEATURES

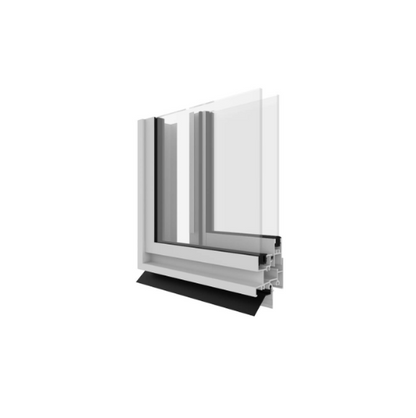

• 47mm & 79mm Standard Frame depths
• Single and double glazed options

• Integrated insect and security screening

• Restricted openings possible
• Standard black handle hardware

WHOLE WINDOW ENERGY PERFORMANCE

• Glass: 6mm Clear - U Value: 6.4 SHGC: 0.70
• Glass: 6mm Grey - U Value: 6.4 SHGC: 0.50

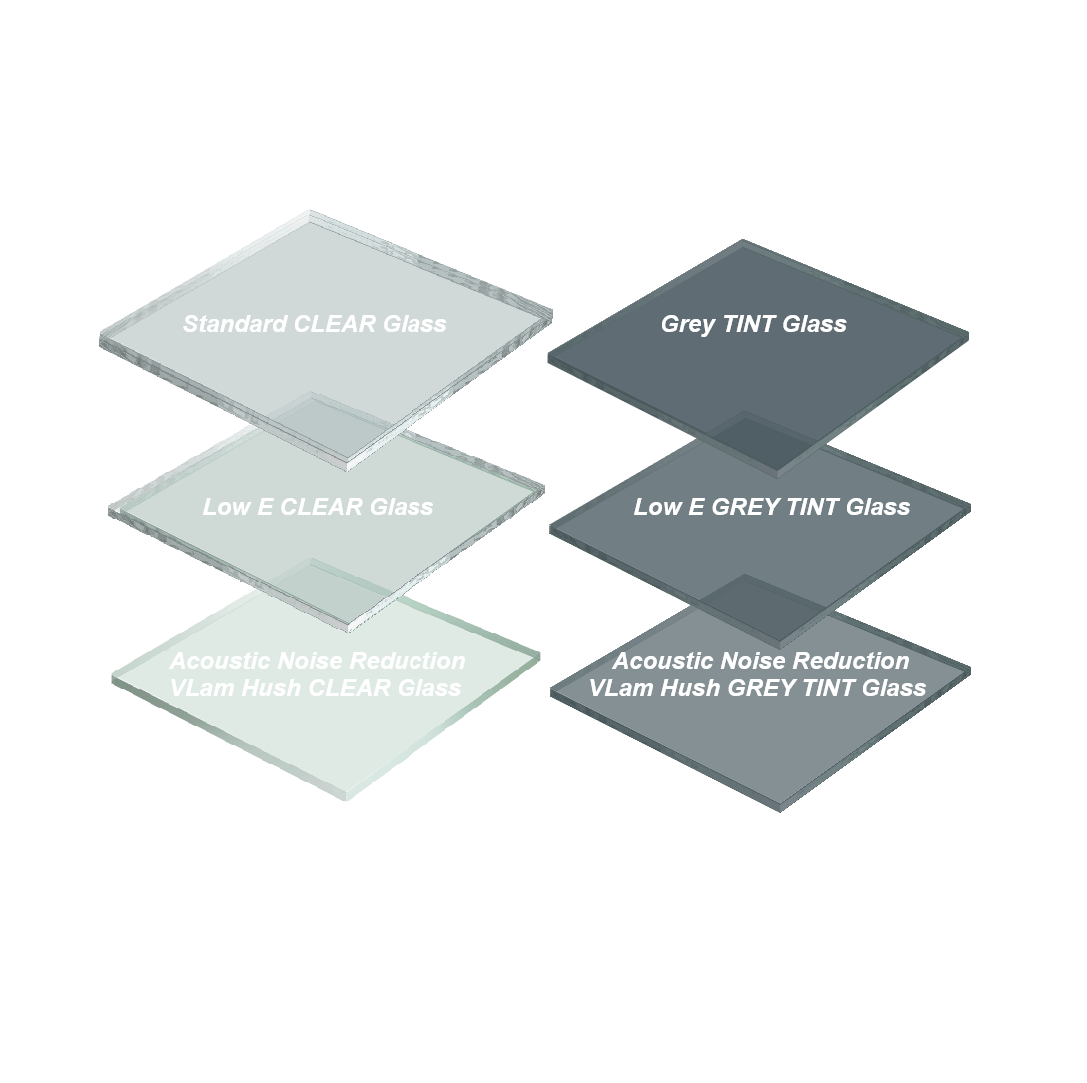

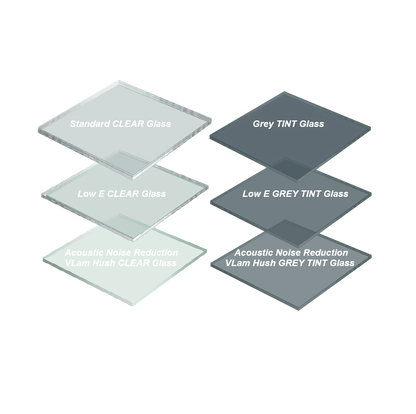

GLASS PERFORMANCE DATA

• Standard CLEAR Glass - U Value: 5.7 SHGC: 0.79
• GREY TINT Glass - U Value: 5.7 SHGC: 0.62
• Low E CLEAR Glass - U Value: 3.6 SHGC: 0.69
• Low E GREY TINT Glass - U Value: 3.6 SHGC: 0.50
• Acoustic Noise Reduction VLam Hush CLEAR Glass - U Value: 5.7 SHGC: 0.78
• Acoustic Noise Reduction VLam Hush GREY TINT Glass - U Value: 5.7 SHGC: 0.61

DOES YOUR WINDOW REQUIRE AN OPENING RESTRICTOR?

BCA 2013  (NCC 2013) Stipulates that openable windows in bedrooms in Class 1, 2 and 3 building, Class 4 parts of buildings and all early childhood centres, where the floor level is above 2m from the surface beneath and where openings are less than 1.7m above the floor, will:

Option 1 – the window sash must be restricted so that a 125mm sphere subjected to a 250 N  (equivalent to 25kg) force cannot pass through the opening

Option 2 – A barrier screen be installed which must resist 250 N of outward force.  The device or screen may be removable but must have a child resistant release mechanism.

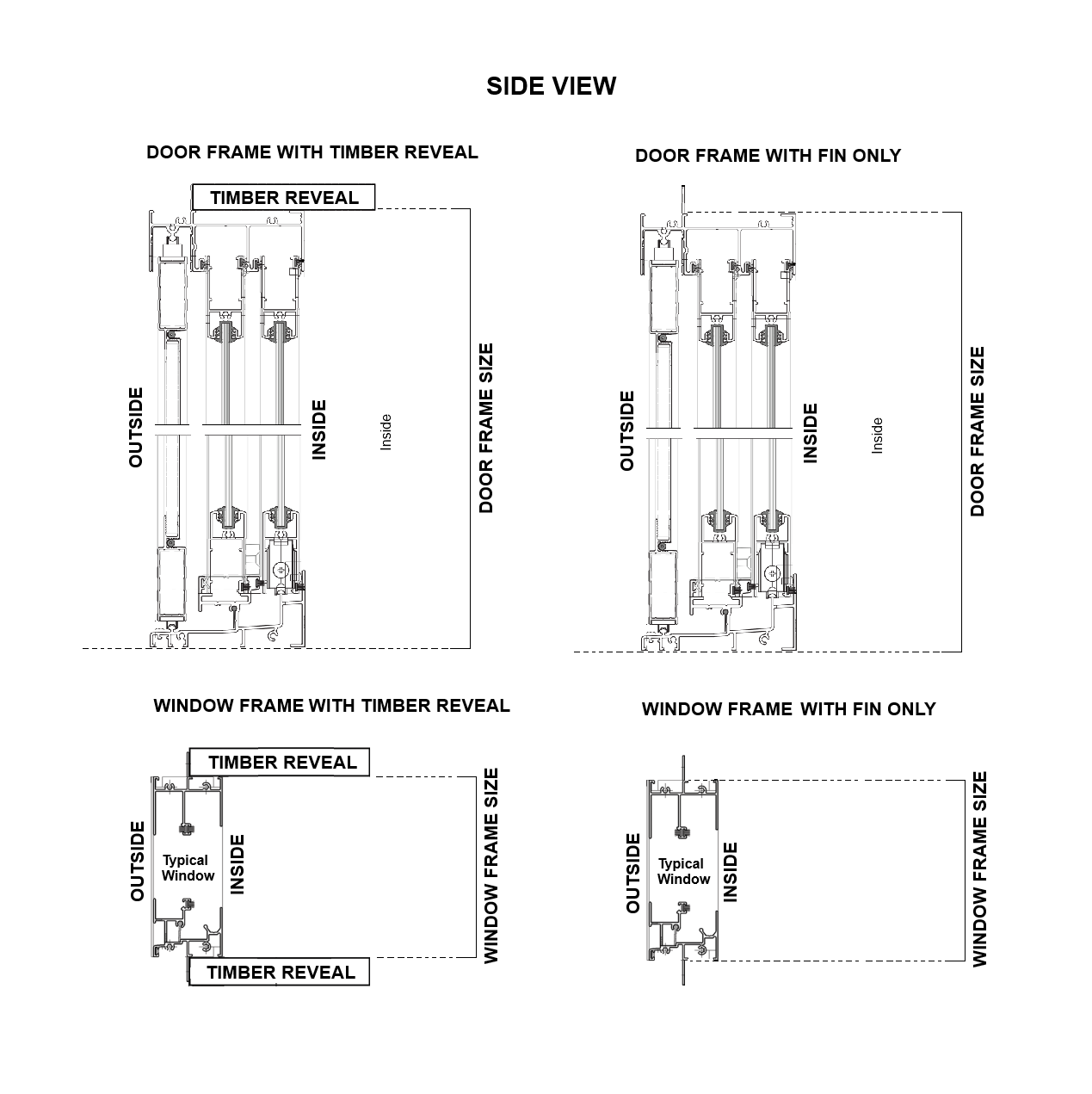

DOES YOUR WINDOW NEED TIMBER REVEALS?

A window reveal is used to fix the window itself into the stud wall frame. The main purpose of a reveal is to provide extra support to the aluminium frame of the window unit, no matter which types of reveals you choose. Mostly brick veneer wall structure or similar wall types will require a window reveal for installation. Alternatively you can order your window with a fin only that can be used for fixing or simply removed by snapping off if required.

Please note that all images are for illustrative purposes only and may not be an exact representation of the product.
