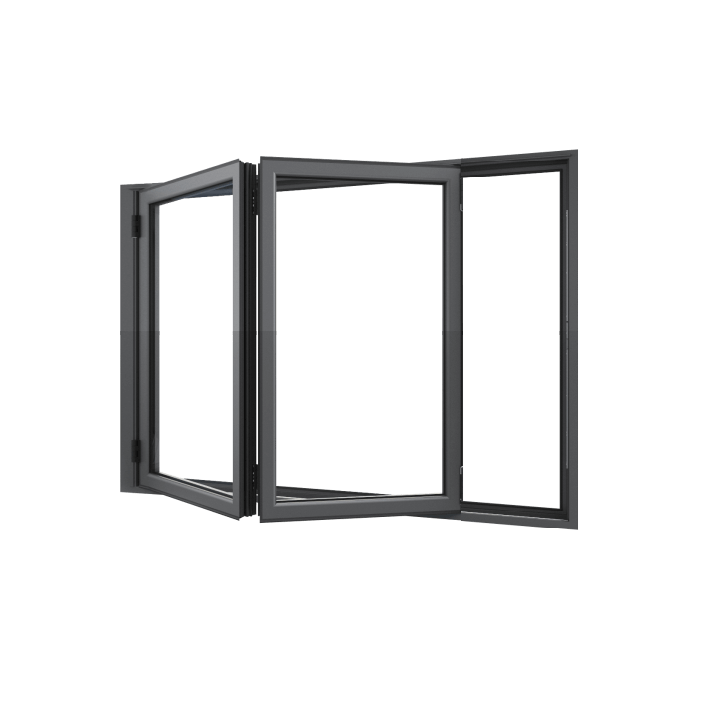

Bifold Window 2-STACKING LEFT (OPEN OUT) 1000 H x 1450 W

Name: Bifold Window 2-STACKING LEFT (OPEN OUT) 1000 H x 1450 W
Brand: Aluminium Bifold Windows
Price: 2547.0 AUD
Availability: InStock

$2,547.00

Sale Sold out

Shipping calculated at checkout.

Do you want your glass to be Obscure / Frosted?

This option is for windows only.

Would you like Double Glazed glass?

Do you need Timber Reveals?

Do you need a Custom Size?

This size must be under the standard size.

Do we need to know anything else?

I have read and accept the conditions as below^*

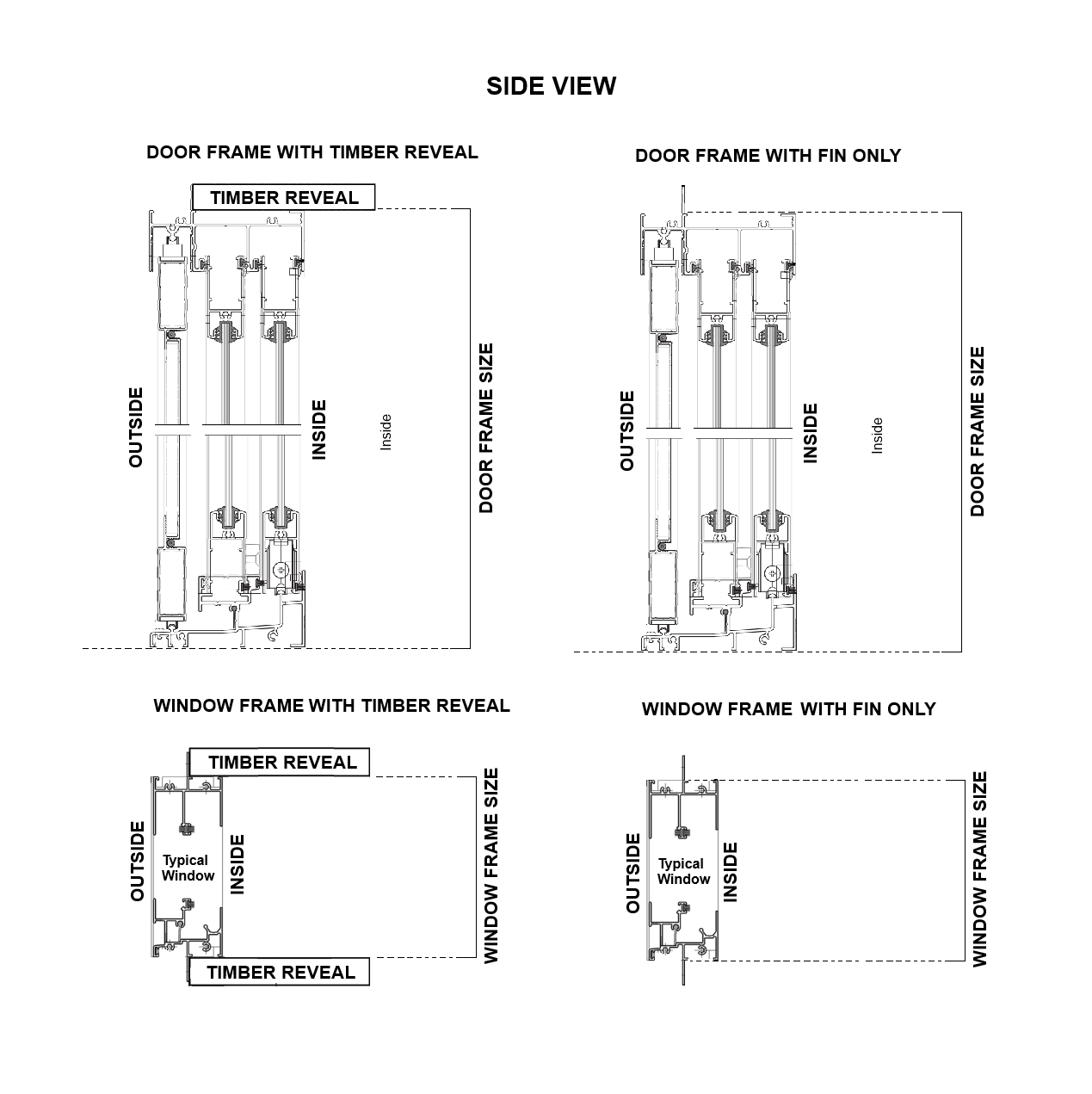

Note: All items are viewed looking from the outside. All sizes are the aluminium frame size and do not include the fin or reveal. If reveals are added to a door this will add 20mm to the height and 40mm to the width - If reveals are added to a window this will add 40mm to the height and 40mm to the width. With doors reveals are fitted to the top and sides only and on windows reveals are fitted to all sides.

Quantity

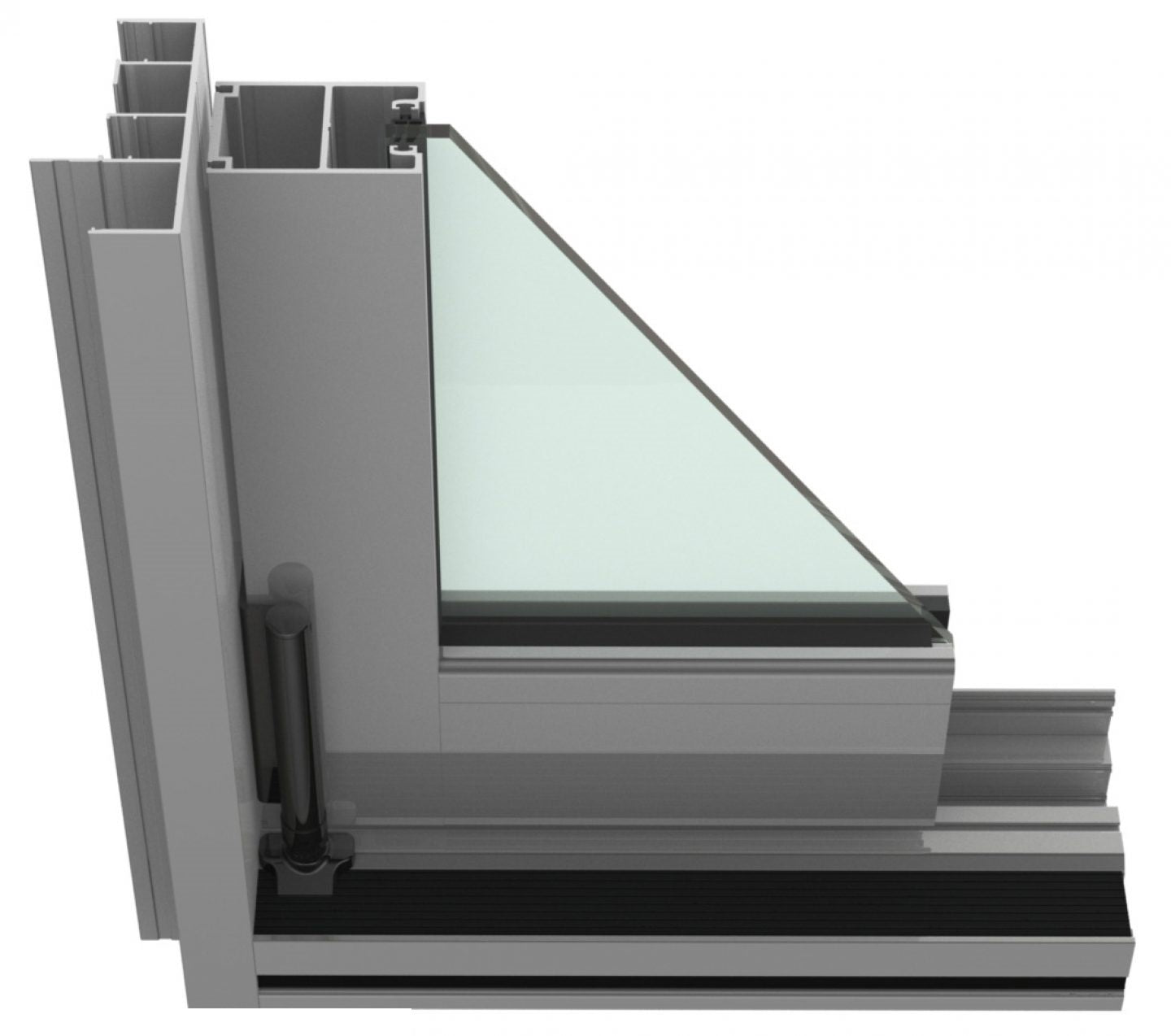

DESCRIPTION: For a modern designer look, the Bi-Fold Door extrusions are a consistent 85mm wide face on both the stiles and rails. This allows a balanced visual face and allows a vast array of hardware lock options.

Combined with commercial grade spigots, these door panels are superior in strength and performance.

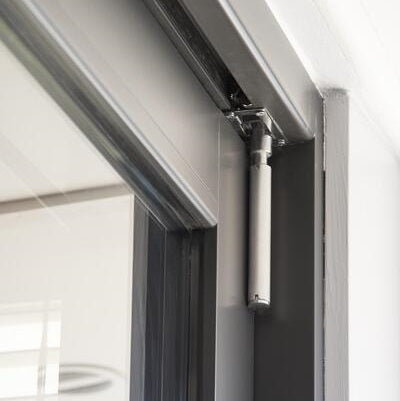

The Bi-Fold system features commercial grade E2 Centor rolling hardware which has been used and proven over time in commercial projects. This is ideal for the new construction market that want an Alfresco style opening.

LEAD TIME: The majority of our products are made to order and delivery is approximately 15 working days from order. Some standard sized products in standard colours may be availed within 3 working days. Please contact us with your required items for confirmation.

KEY FEATURES

92mm & 101.6mm Standard Frame depths
Single and double glazed options
Available in standard, multi-stack configurations
Commercial grade Centor hardware

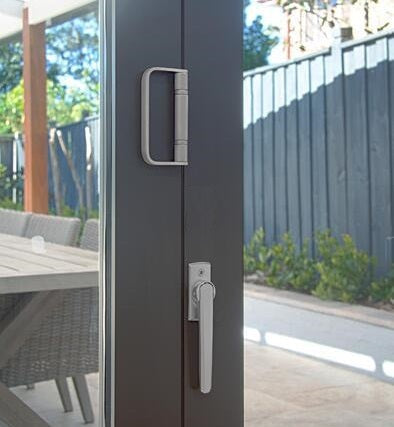

Hardware and Handles are Satin Chrome / Satin Stainless Steel

WHOLE WINDOW ENERGY PERFORMANCE

Glass: 6mm Clear - U Value: 5.9 SHGC: 0.59
Glass: 6mm Grey - U Value: 5.9 SHGC: 0.44

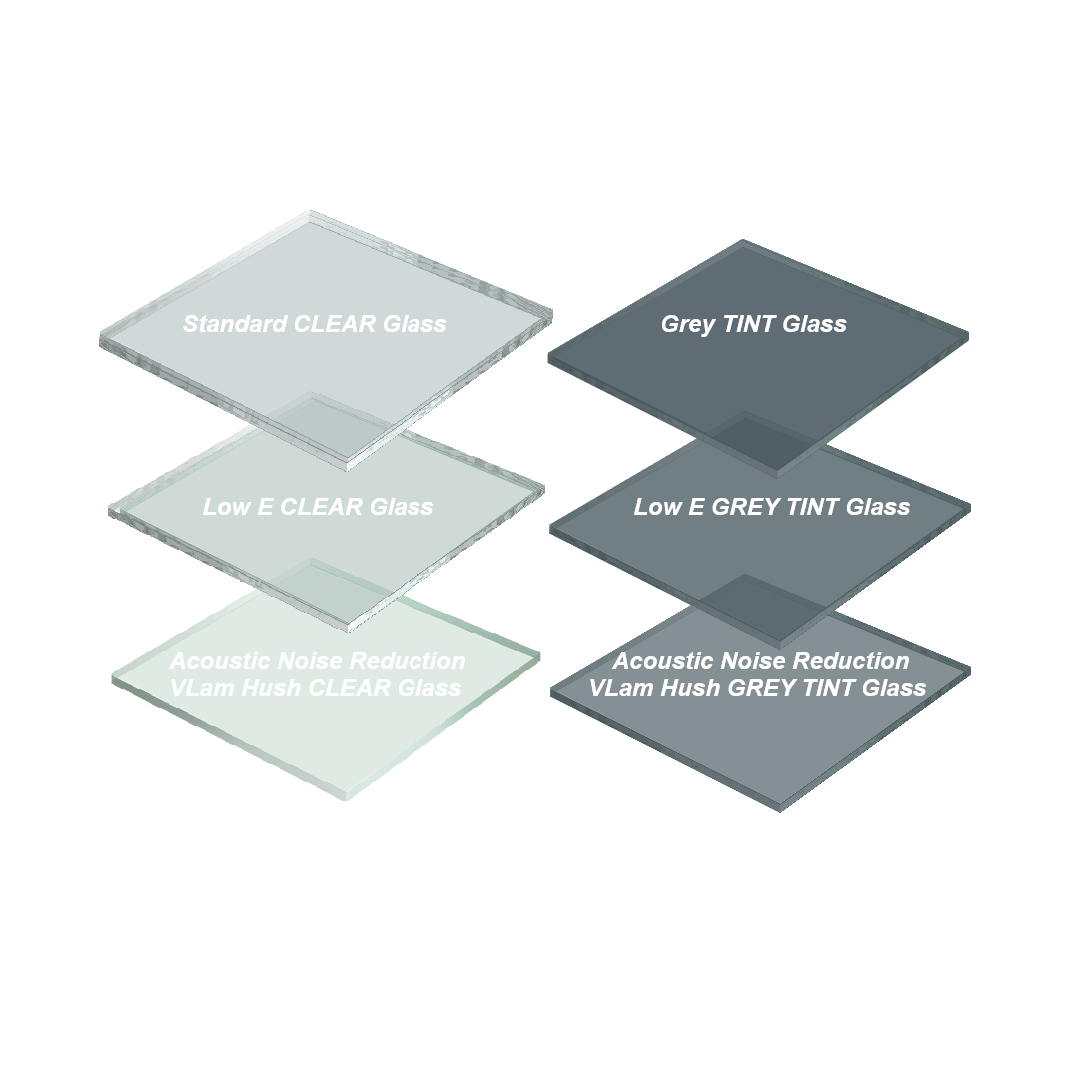

GLASS PERFORMANCE DATA

Standard CLEAR Glass - U Value: 5.7 SHGC: 0.79
GREY TINT Glass - U Value: 5.7 SHGC: 0.62
Low E CLEAR Glass - U Value: 3.6 SHGC: 0.69
Low E GREY TINT Glass - U Value: 3.6 SHGC: 0.50
Acoustic Noise Reduction VLam Hush CLEAR Glass - U Value: 5.7 SHGC: 0.78
Acoustic Noise Reduction VLam Hush GREY TINT Glass - U Value: 5.7 SHGC: 0.61

DOES YOUR WINDOW NEED TIMBER REVEALS?

A window reveal is used to fix the window itself into the stud wall frame. The main purpose of a reveal is to provide extra support to the aluminium frame of the window unit, no matter which types of reveals you choose. Mostly brick veneer wall structure or similar wall types will require a window reveal for installation. Alternatively you can order your window with a fin only that can be used for fixing or simply removed by snapping off if required.
