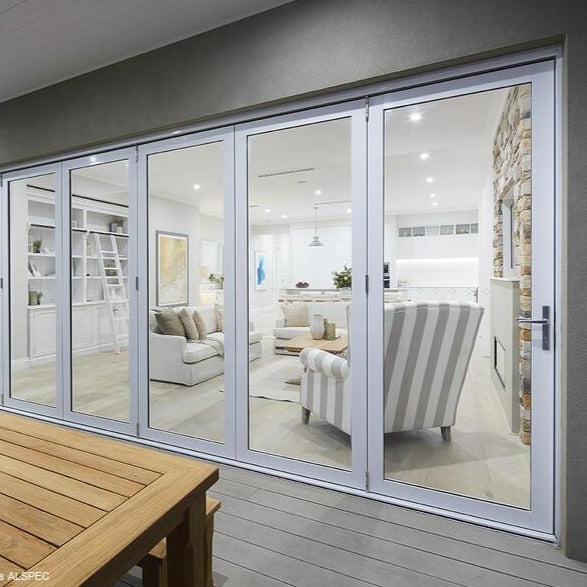

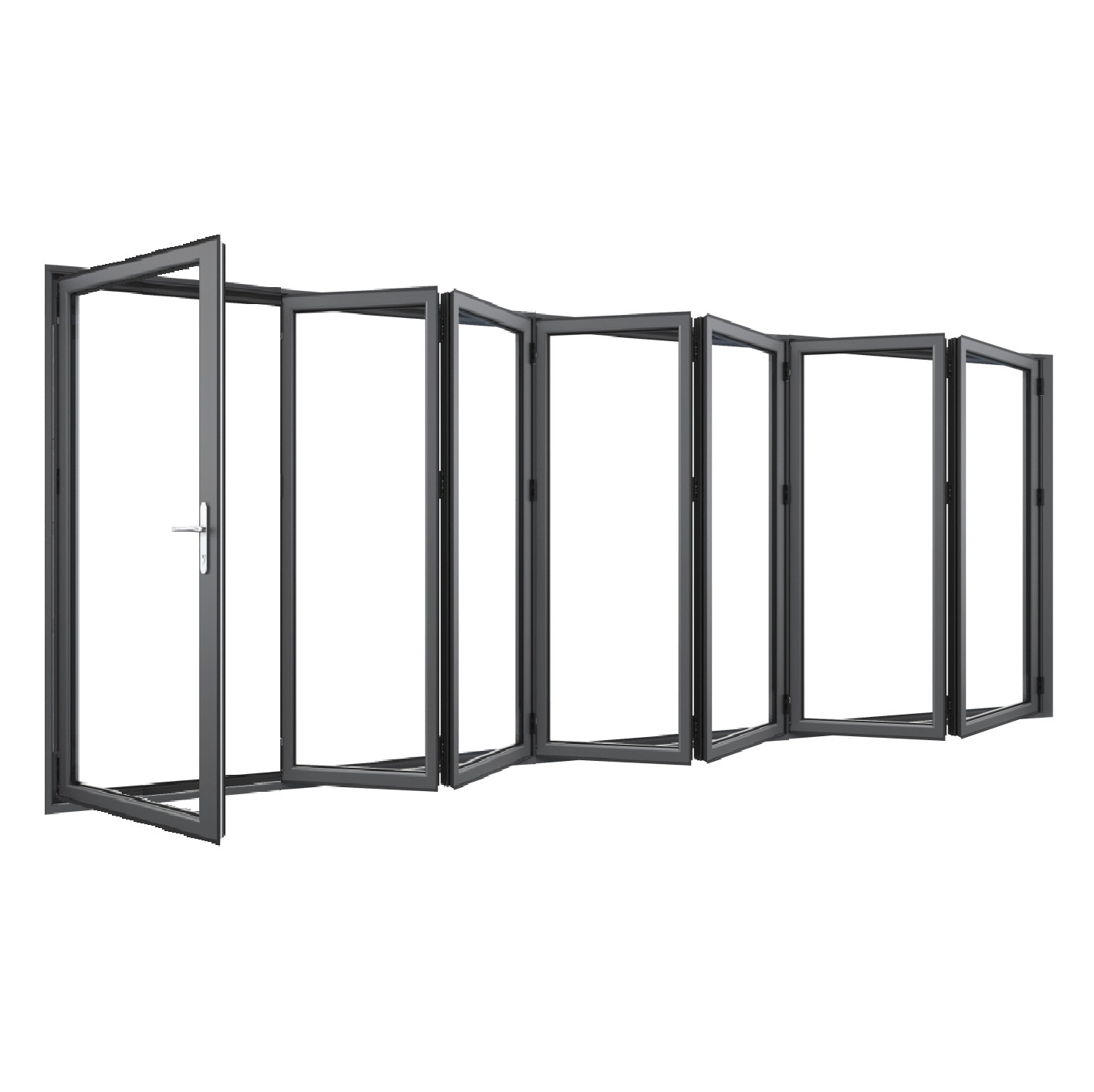

Bifold Doors 6-STACKING RIGHT \ 1 LEFT (OPEN OUT) 2400 H x 6350 W

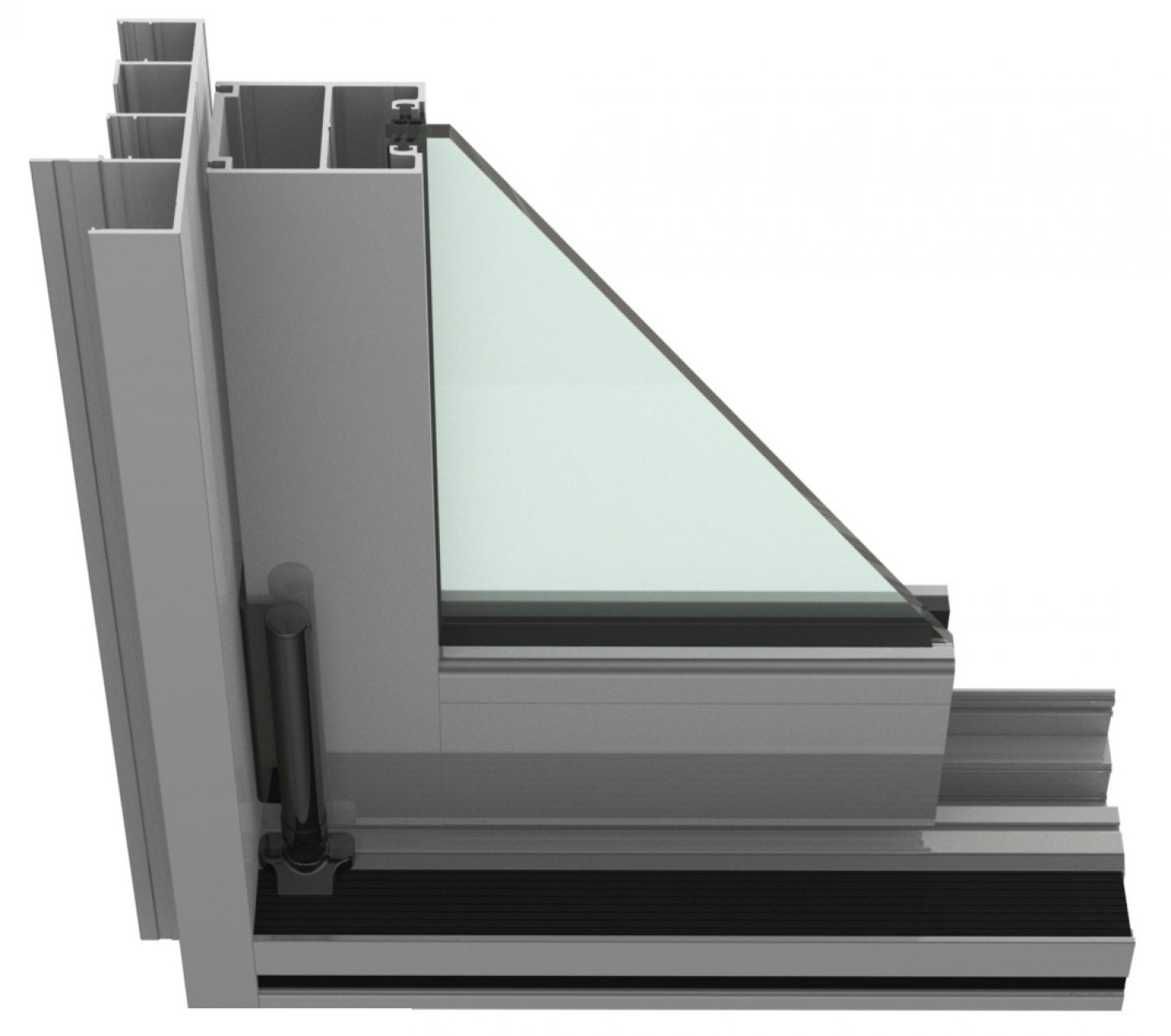

DESCRIPTION: For a modern designer look, the Bi-Fold Door extrusions are a consistent 85mm wide face on both the stiles and rails. This allows a balanced visual face and allows a vast array of hardware lock options.

Combined with commercial grade spigots, these door panels are superior in strength and performance.

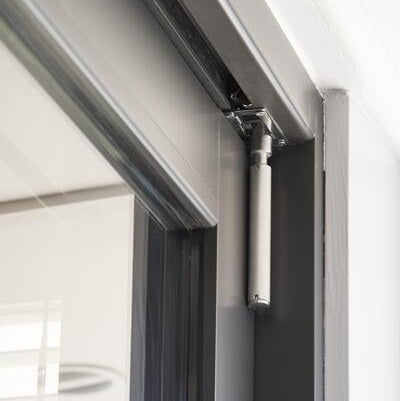

The Bi-Fold system features commercial grade E2 Centor rolling hardware which has been used and proven over time in commercial projects. This is ideal for the new construction market that want an Alfresco style opening.

LEAD TIME: The majority of our products are made to order and delivery is approximately 15 working days from order. Some standard sized products in standard colours may be availed within 3 working days. Please contact us with your required items for confirmation.

KEY FEATURES

• 92mm & 101.6mm Standard Frame depths
• Single and double glazed options
• Available in standard, multi-stack configurations

• Commercial grade Centor hardware

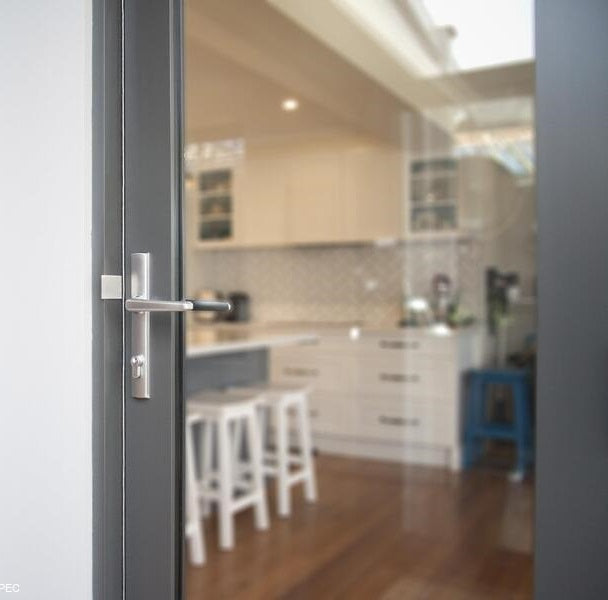

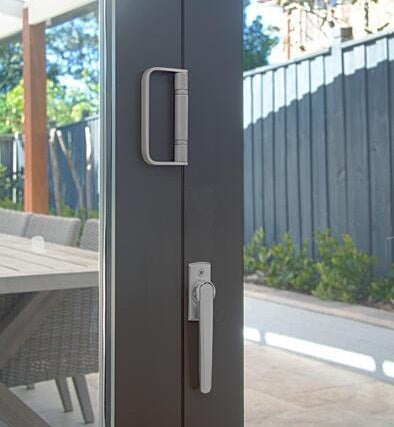

• Hardware and Handles are Satin Chrome / Satin Stainless Steel

WHOLE WINDOW ENERGY PERFORMANCE

• Glass: 6mm Clear - U Value: 5.9 SHGC: 0.59
• Glass: 6mm Grey - U Value: 5.9 SHGC: 0.44

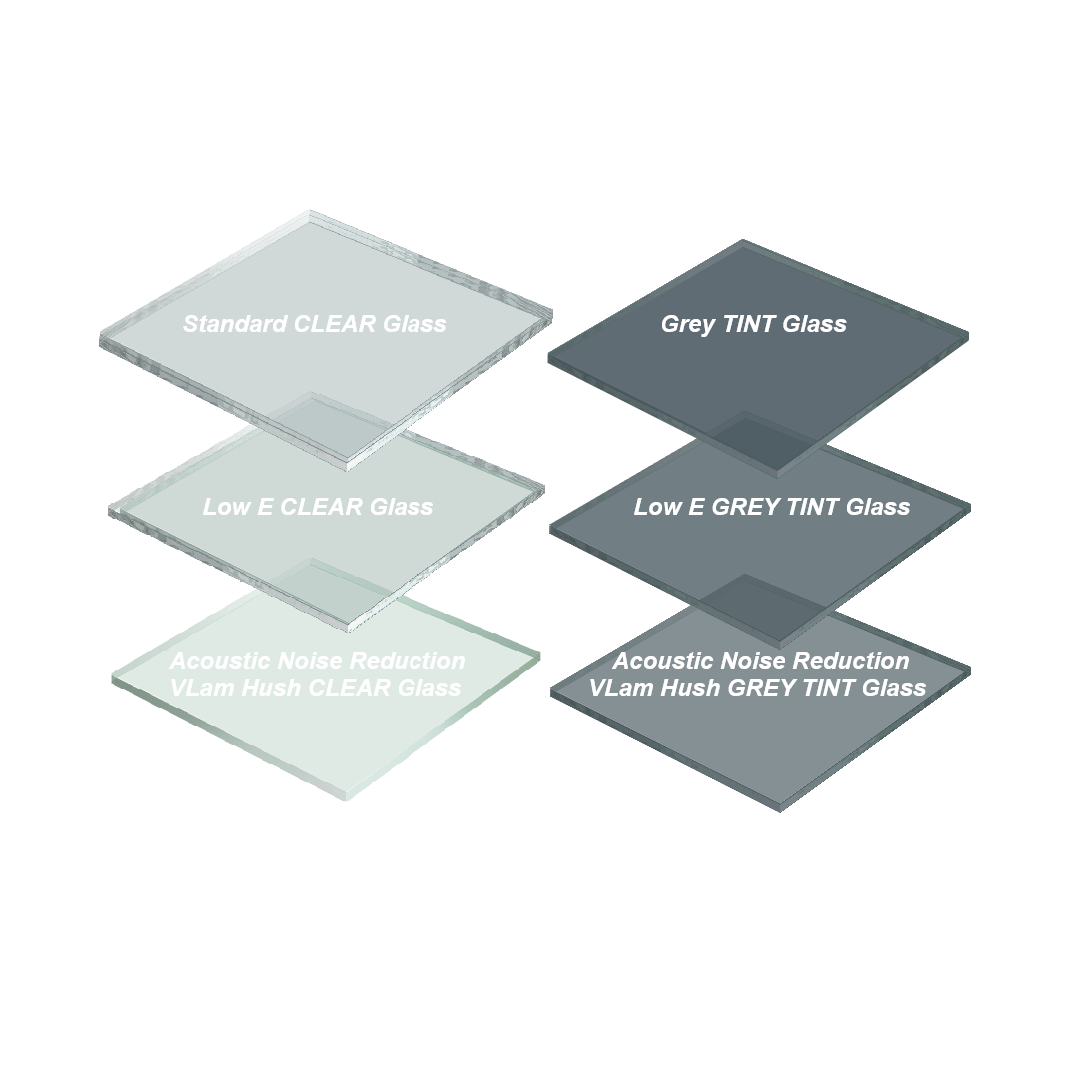

GLASS PERFORMANCE DATA

• Standard CLEAR Glass - U Value: 5.7 SHGC: 0.79
• GREY TINT Glass - U Value: 5.7 SHGC: 0.62
• Low E CLEAR Glass - U Value: 3.6 SHGC: 0.69
• Low E GREY TINT Glass - U Value: 3.6 SHGC: 0.50
• Acoustic Noise Reduction VLam Hush CLEAR Glass - U Value: 5.7 SHGC: 0.78
• Acoustic Noise Reduction VLam Hush GREY TINT Glass - U Value: 5.7 SHGC: 0.61

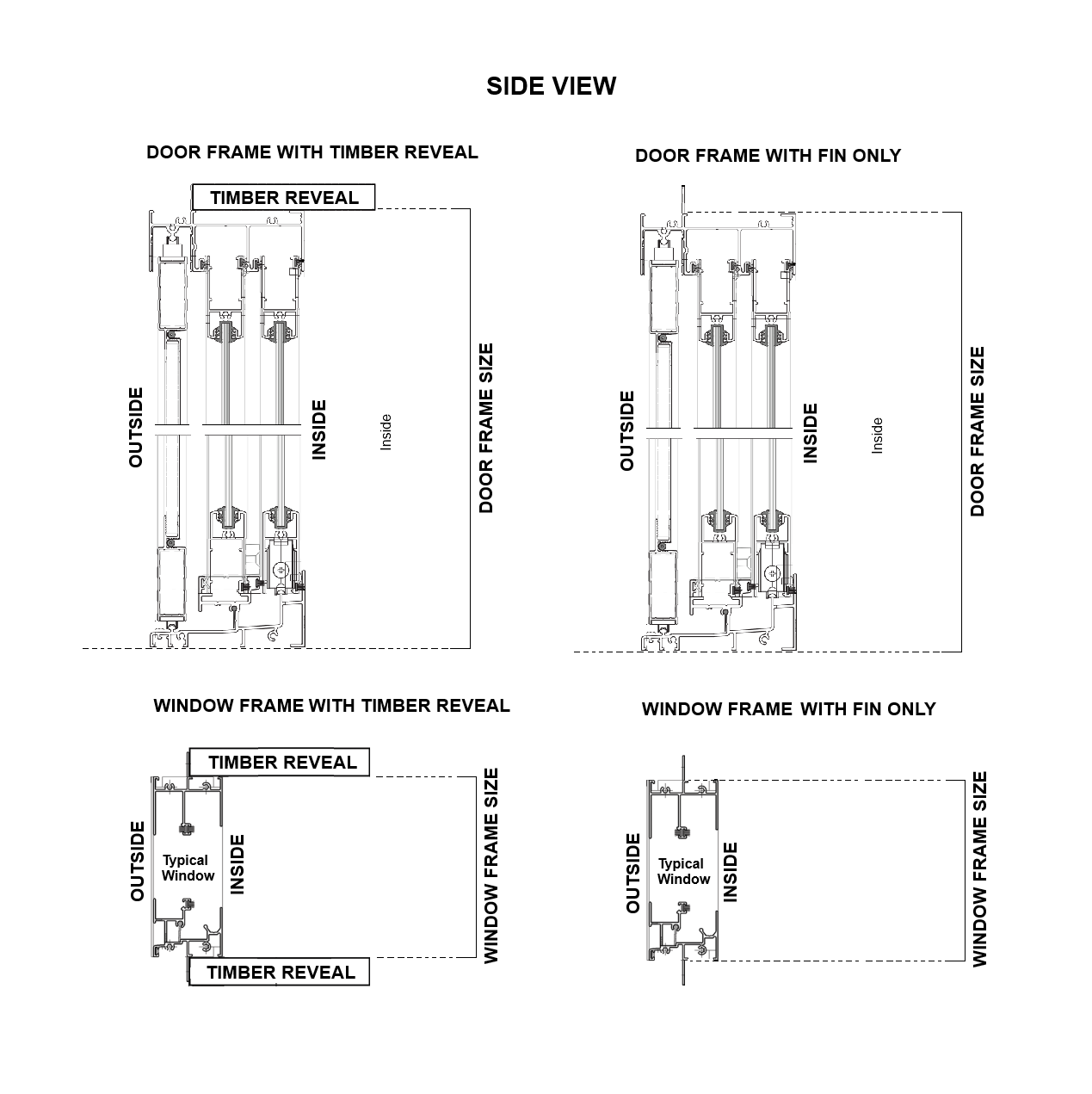

DOES YOUR WINDOW NEED TIMBER REVEALS?

A window reveal is used to fix the window itself into the stud wall frame. The main purpose of a reveal is to provide extra support to the aluminium frame of the window unit, no matter which types of reveals you choose. Mostly brick veneer wall structure or similar wall types will require a window reveal for installation. Alternatively you can order your window with a fin only that can be used for fixing or simply removed by snapping off if required.

Please note that all images are for illustrative purposes only and may not be an exact representation of the product.
